Assessment of Micro-pile Group Capacity in Soft Clay Soils Using Closed-Form Machine Learning Models

Gnananandarao, Tammineni; Chukka, Naga Dheeraj Kumar Reddy; Kumar, B.A.V. Ram; Muktinutalapati, Jayatheja; Maralapalle, Vedprakash; Kumar, Mummidivarapu Satish; Ajay, CH.; Uma Maheswara Rao, P.

doi:10.22115/scce.2025.501243.2023

Assessment of Micro-pile Group Capacity in Soft Clay Soils Using Closed-Form Machine Learning Models

Document Type : Regular Article

Authors

Tammineni Gnananandarao ¹

Naga Dheeraj Kumar Reddy Chukka ¹

B.A.V. Ram Kumar ²

Jayatheja Muktinutalapati ³

Vedprakash Maralapalle ⁴

Mummidivarapu Satish Kumar ¹

CH. Ajay ¹

P. Uma Maheswara Rao ¹

¹ Department of Civil Engineering, Aditya University, Surampalem, Andhra Pradesh, India, 533437

² Department of Civil Engineering, GMR Institute of technology, Rajam, Andhra Pradesh, India

³ RICS School of Built Environment, Amity University Maharashtra, Mumbai, 410206, India

⁴ Associate Professor, L. S. Raheja School of Architecture, Bandra, Mumbai, 400051, India

10.22115/scce.2025.501243.2023

Abstract

The computation of the in-situ load-bearing capacity of micropiles for different soil types using conventional methods is often difficult and time-consuming. Machine learning models, on the other hand, offer promising outcomes by predicting real-time solutions without requiring extensive traditional calculations. In this study, models such as Artificial Neural Networks (ANN) and the M5P model tree are developed using a dataset of 434 experimental results obtained from previous studies. The accuracy of the ANN model is evaluated using the correlation coefficient (𝑅²), which was observed to be 0.99 for both training and testing, with mean absolute percentage errors (MAPE) of 18.38 and 7.67, respectively. Similarly, the M5P model tree achieved an 𝑅² of 0.99, with corresponding MAPE values of 23.92 and 10.01, which were slightly higher than those of the ANN model. The equations developed by both models demonstrated a strong correlation factor with minimal errors. The primary influencing parameters identified were Se/b and 𝑛. Although both models performed well, ANN was found to be more effective than the M5P model, as it exhibited lower relative errors and higher accuracy in predictions.

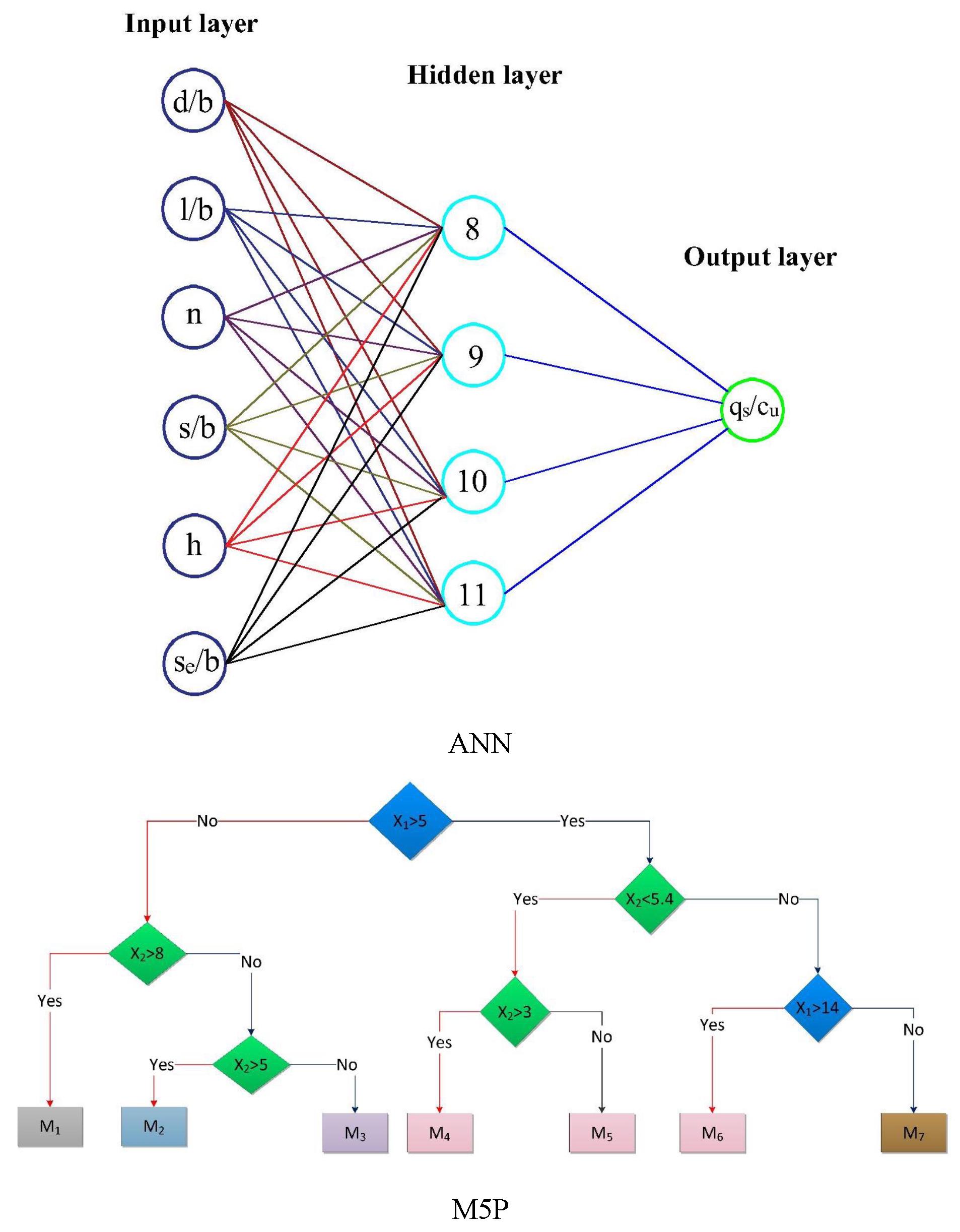

Graphical Abstract

Assessment of Micro-pile Group Capacity in Soft Clay Soils Using Closed-Form Machine Learning Models

Highlights

· ANN and M5P used to predict micropile capacity in soft clay

· Dataset of 434 cases with six dimensionless inputs

· ANN showed higher prediction accuracy than M5P

· Models produced usable predictive equations

· Sensitivity analysis identified key input effects

Keywords

Micro-piles

Soft clay soil

Artificial neural networks

M5P model

Subjects

Artificial Neural Networks
