Predicting the Shear Strength of Reinforced Concrete Dapped End Beams Using Machine Learning Techniques

Quadri, Ajibola Ibrahim; Ojile, Agnes Onyeje; Kupolati, William Kehinde; Ackerman, Chris; Jacque Snyman, Jacque Snyman; Ndambuki, Julius Musyoka

doi:10.22115/scce.2025.480929.1957

Predicting the Shear Strength of Reinforced Concrete Dapped End Beams Using Machine Learning Techniques

Document Type : Regular Article

Authors

Ajibola Ibrahim Quadri ¹

Agnes Onyeje Ojile ²

William Kehinde Kupolati ³

Chris Ackerman ⁴

Jacque Snyman Jacque Snyman ³

Julius Musyoka Ndambuki ³

¹ Ph.D., Department of Civil Engineering, Tshwane University of Technology, South Africa

² MSc., Department of Civil and Environmental Engineering, The Federal University of Technology, Akure

³ Professor, Department of Civil Engineering, Tshwane University of Technology, South Africa

⁴ Senior Lecturer, Department of Civil Engineering, Tshwane University of Technology, South Africa

10.22115/scce.2025.480929.1957

Abstract

Reinforced concrete dapped end beams (RCDEBs) are prone to shear failure due to sudden changes in the cross-section. Hence there is a need to study the shear behavior of the member under loading. This research collected 203 experimental results of RCDEB tests from 17 investigations to predict the shear strength. Geometrical features, concrete strength, amount, and reinforcement layout were considered. The collected datasets were used to train support vector machine (SVM), K-nearest neighbor (KNN), and multilayer perceptron (MLP) models for the shear strength prediction in WEKA software. Variable importance was also carried out to identify the most relevant parameters for predicting the shear strength of RCDEBs. The finding revealed a high prediction accuracy of the shear strength with R of 99, 98, and 97% for SVM, MLP, and KNN, respectively under the percentage split, revealing a strong correlation between the actual dataset and the predicted values. The SVM outperforms MLP and KNN models by 0.52% and 3.27%, respectively. Furthermore, the variable importance analysis revealed that compressive strength, the amount of reinforcement, and geometry are the main parameters influencing the shear capacity of RCDEBs.

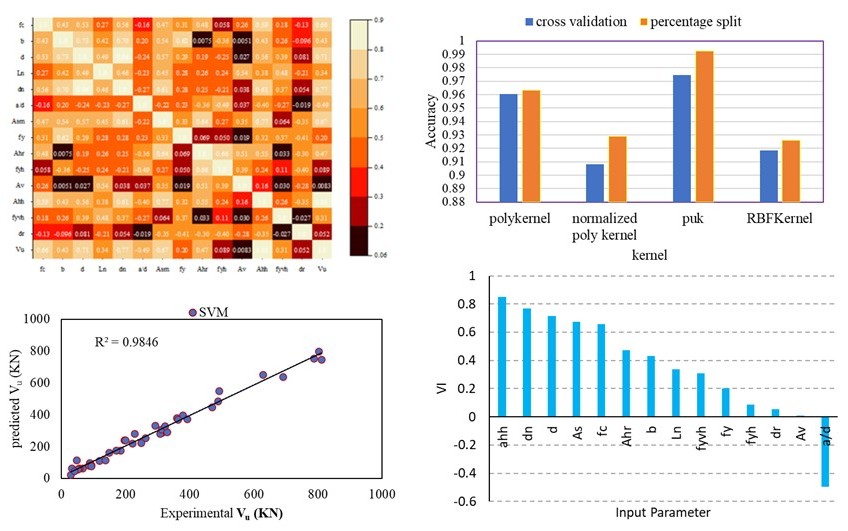

Graphical Abstract

Predicting the Shear Strength of Reinforced Concrete Dapped End Beams Using Machine Learning Techniques

Highlights

· Shear strength prediction of reinforced dapped end beams (RCDEBs) has been investigated

· Machine learning using WEKA software

· Support vector machine (SVM), K- nearest neighbor (KNN), and Multilayer perception (MLP) algorithms were employed

· Parameters affecting the shear strength of RCDEBs were observed

Keywords

RCDEBs

Shear capacity

WEKA

Support vector machine

K nearest neighbor

Multilayer perceptron

Subjects

Machine Learning
